Specifications and Outline Drawing
You can view the detailed technical specifications and outline dimension drawing of the bubble eliminator.
Product lineup
Five types available according to application and flow rate. Suitable for a wide range of flow rates.

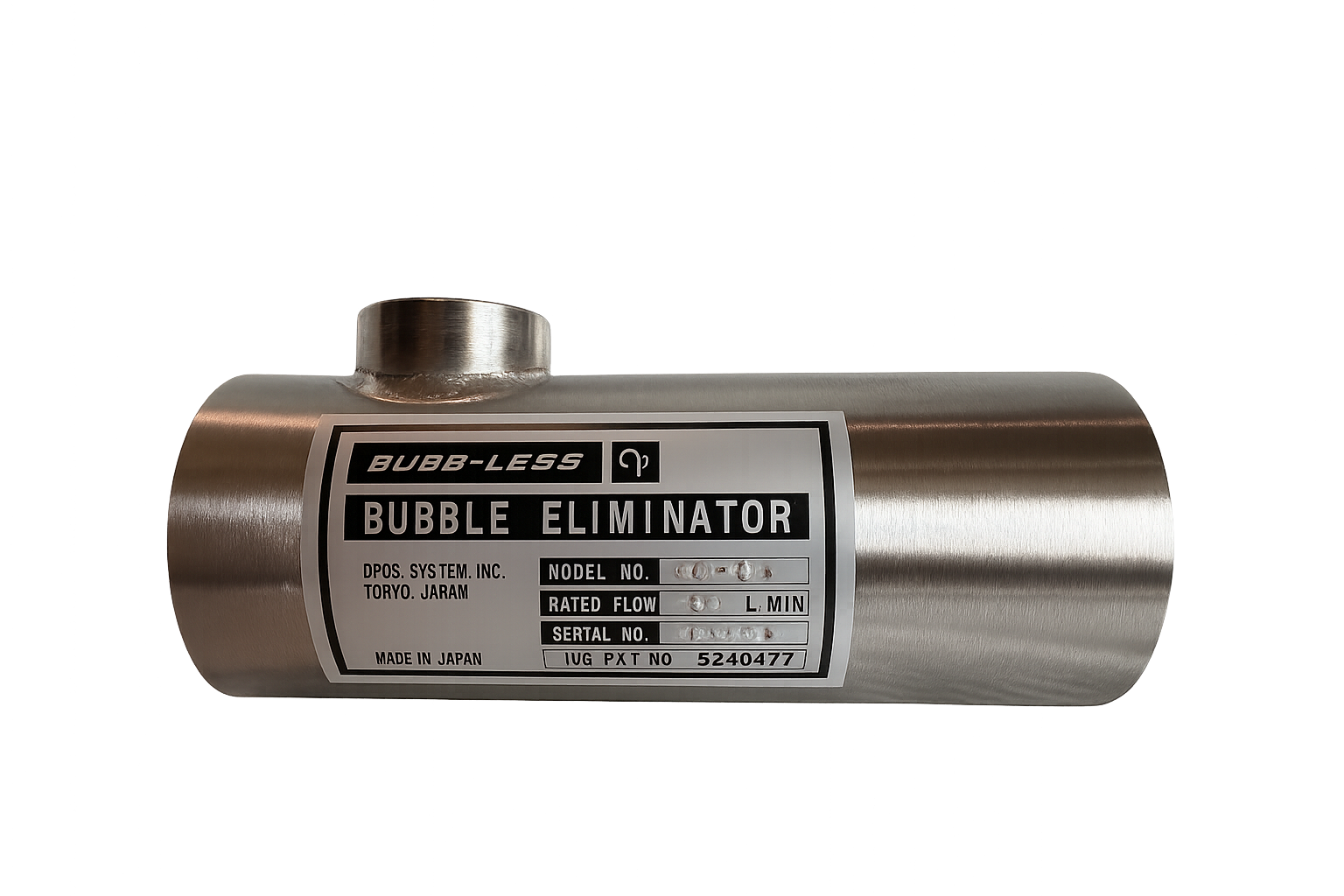

【BM・BC type】
Available in small to medium flow formats, with connection ports sized as specified by the customer.

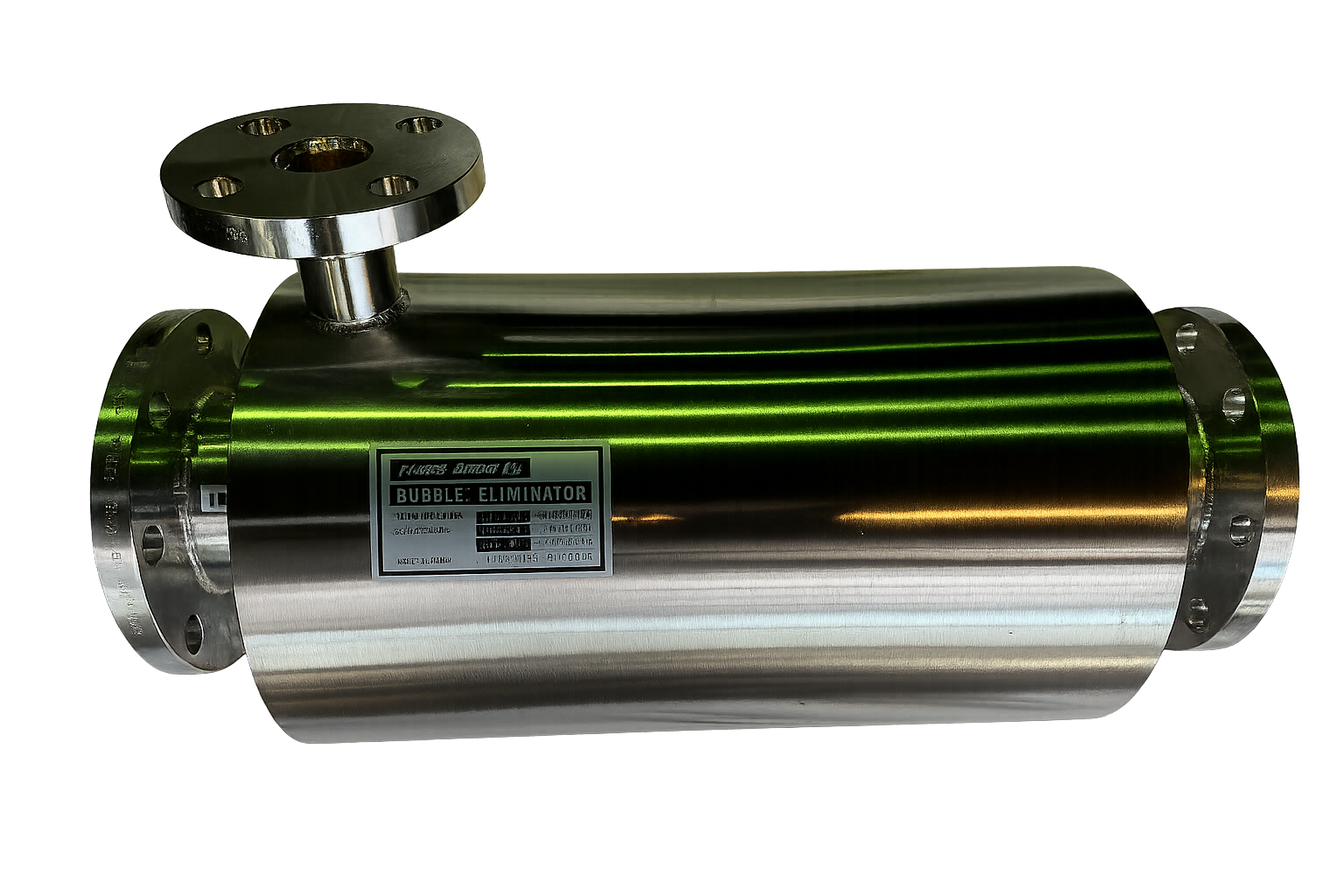

【Inline type】
It features a shape that does not affect system design and supports various flow rates, from low to high flow rates.

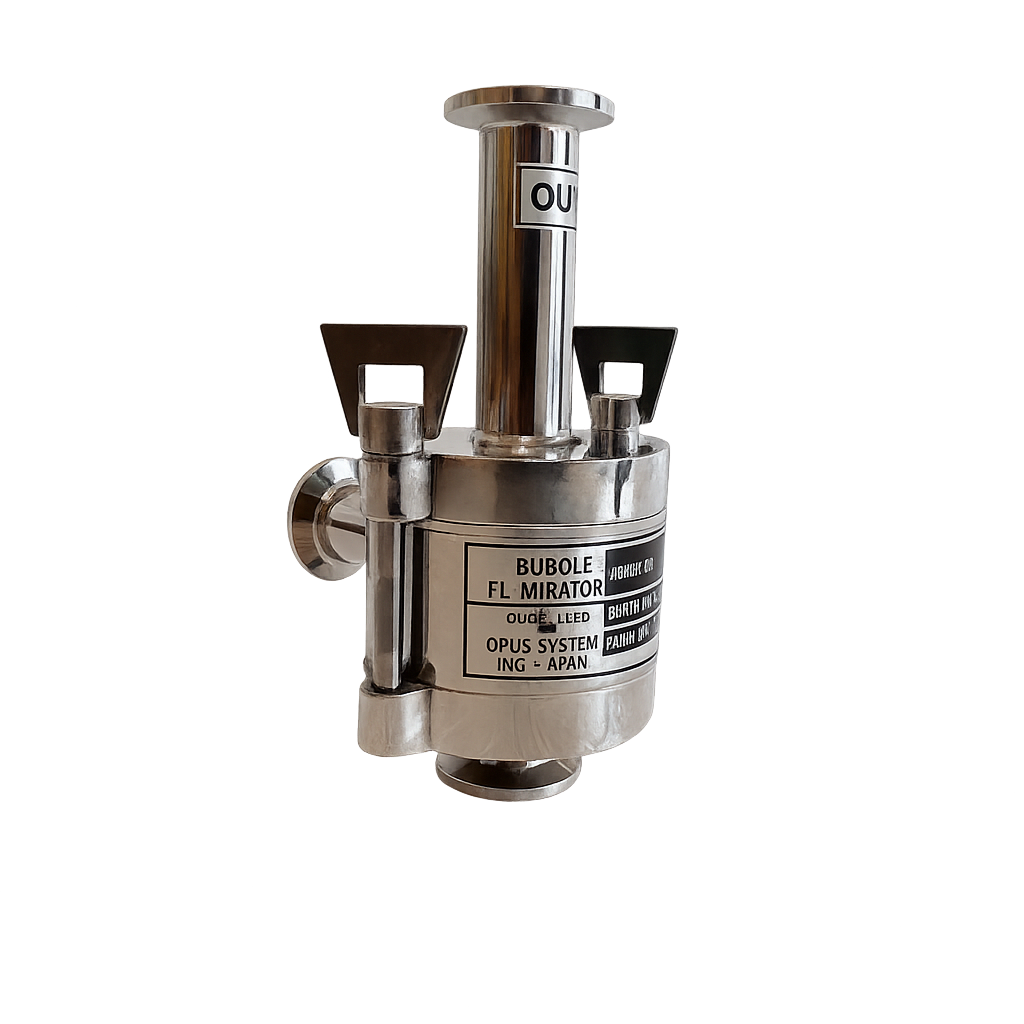

【BS-C・BS type】
It can be selected when disassembly and cleaning are necessary, such as for food and beverages, pharmaceuticals, and cosmetics. The connection will be in a ferrule format, and the diameter will be in the dimensions requested by the customer. In addition to the conventional BS type, we also offer BS-C and BS-CX types with improved cleanability. Compatible with CIP cleaning.
【Coater type】
Used for producing coated paper in large paper machines. Internal cleaning and exchange are easily manageable during color changes.

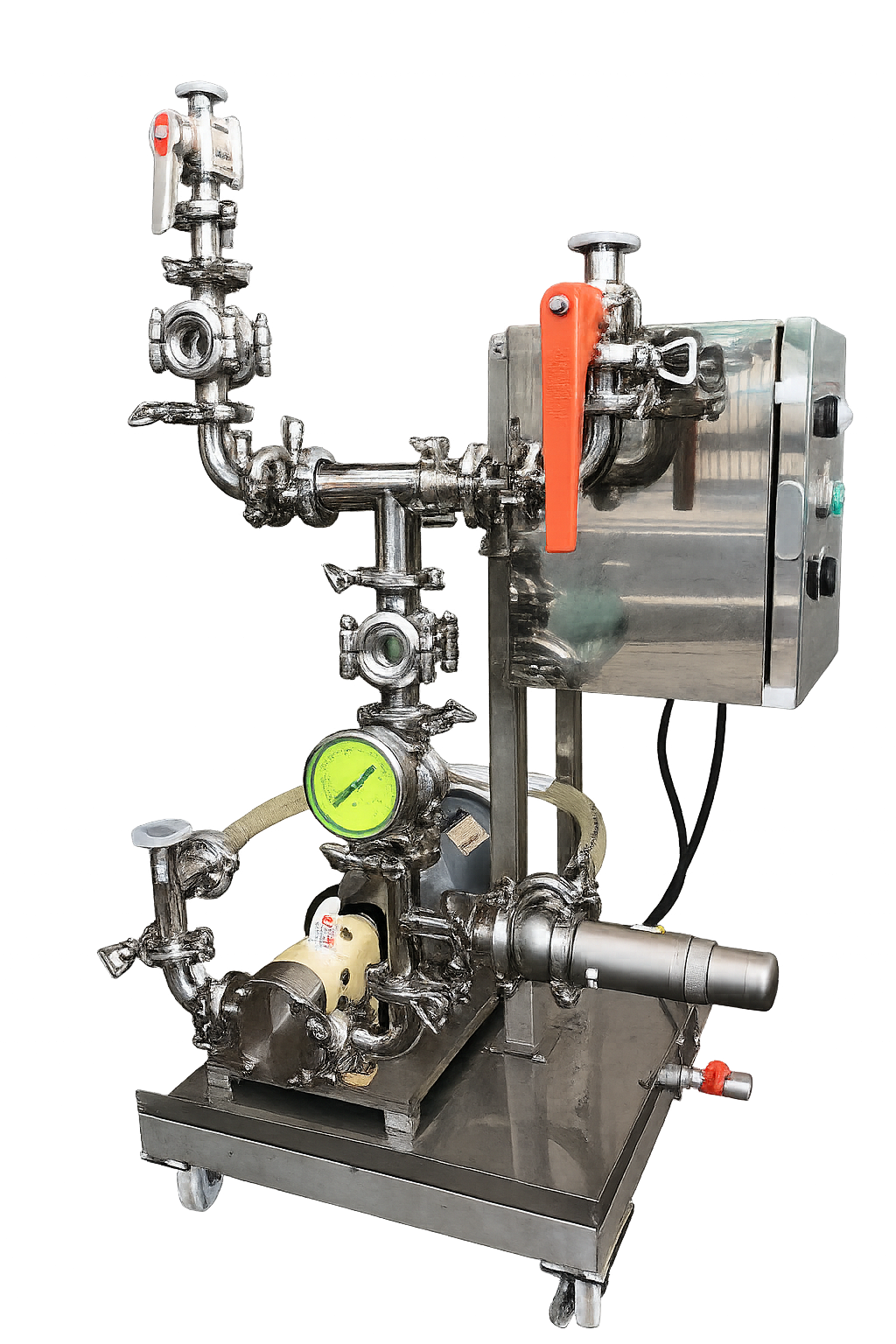

【Unit type】
Bubble Eliminator unitized. Simply connect to the tank for easy bubble removal.
Standard Type Outline Diagram
| Flow Rate (L/min) | A | B | C | D (mm) | E (mm) | F (mm) | G (mm) |
|---|---|---|---|---|---|---|---|
| 5 | RC 1/4 | RC 1/4 | RC 1/8 | ⌀48.6 | 120 | 30 | 30 |
| 10 | RC 1/2 | RC 1/2 | RC 1/4 | ⌀60.5 | 160 | 40 | 30 |
| 30 | RC 3/4 | RC 3/4 | RC 1/4 | ⌀75.3 | 206 | 45 | 45 |
| 70 | RC 1 | RC 1 | RC 1/4 | ⌀76.3 | 200 | 50 | 55 |
| 140 | RC 1 1/2 | RC 1 1/2 | RC 3/8 | ⌀89.1 | 220 | 70 | 60 |
Learn more
Learn in detail about the operating principles of bubble eliminators and their actual implementation effects
